How to Guide: JTECH-QS100 (JTD-396)- QuickShare Wireless Presentation System

JTECH-QS100/JTD-396



Introduction:

The JTECH-QS100 or Quickshare Wireless Presentation System is the ultimate tool for conference rooms in any corporate office. With this presentation system that acts as a switch/extender combo you can transmit HD 1080p video wirelessly to an HDMI display up to 65 feet away (within line of sight). This device is ideal for screen sharing with multiple users allowing for 5 users to connect their HDMI source device to a sender which transmits to the receiver. Content sharing and collaboration is made easy by allowing users to broadcast on their display with the push of a button with near zero latency (1.3-1.8 millisecond).

Connection Instructions:

• Plug the transmitter into the source device
• Connect HDMI output to HDMI display device via HDMI cable
• Power on the device

*Note:

• If connecting multiple transmitters, it is best to connect one at a time. Wait until the first source is connected and displayed before connecting other transmitters.
• When the wireless signal transmits through walls, glass or other obstacles, it will cause signal loss. Please install this device in a open environment with no obstacles in between.
• This wireless functionality of this unit may affect transmissions such as wireless mouse and keyboards.

Operation Instructions:

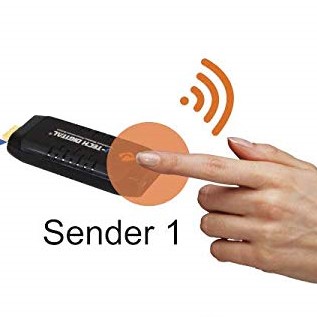

• Press the switch button located on the transmitter to change in between sources



*Note:

• Unit will not switch between sources without the press of the quick share button.
• Unit does not cycle through sources once a transmitter is removed. You will need to press the quick share button in order for the transmitter currently connected to display the source.
• If only one transmitter is being used, and the presenter does not want their device image to show. They will need to remove the transmitter from the HDMI input of the source.

Features:

• HDMI Version: 1.3
• HDCP Version: 1.2
• Transmission Distance: 65 Feet Max
• Supported Resolutions: 1080p/1080i 720p/720i 576p/576i 480p/480i
• # of Transmitters Supported: 5 Max
• Wireless Transmission: 5GHz
• Latency: 1.3-1.8 milliseconds
• Audio Format: Stereo PCM
• Chroma Subsampling: 4:2:0
• Imaging: SDR (Standard Dynamic Range)

Installation Requirements:

• HDMI source device (DVD, Cable box, PC/MAC)
• HDMI display device (SDTV, HDTV, Projector with HDMI port)

Package Contents:

• 1x Presentation Receiver
• 3x Transmitters/Senders
• 3x HDMI L Adapters
• 3x Male to Female HDMI Cable Adapters
• 3x Micro USB Cables
• 1x DC 5V/2A Power Adapter
• 1x User Manual





Application

The JTECH-QS100 is great for conference room setups to enhance meetings and presentations. This system can wirelessly connect up to 5 sources at once with the use of JTECH-QS100B. Switch quick easily with the push of a button, and experience HD 1080p with near zero latency. With the use of multiple transmitters, this system can be setup in a One to One or a Many to One application.

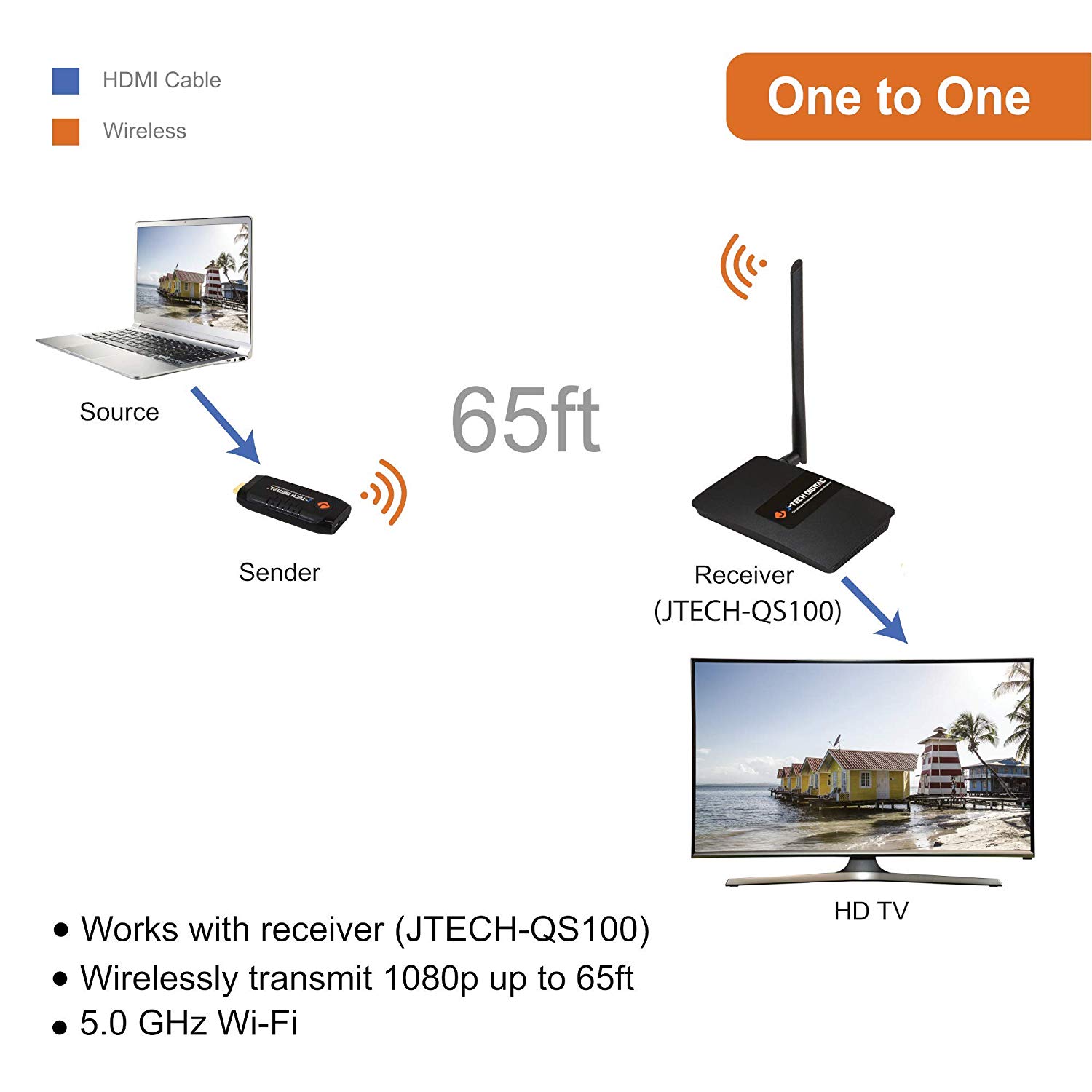

One to One Setup:

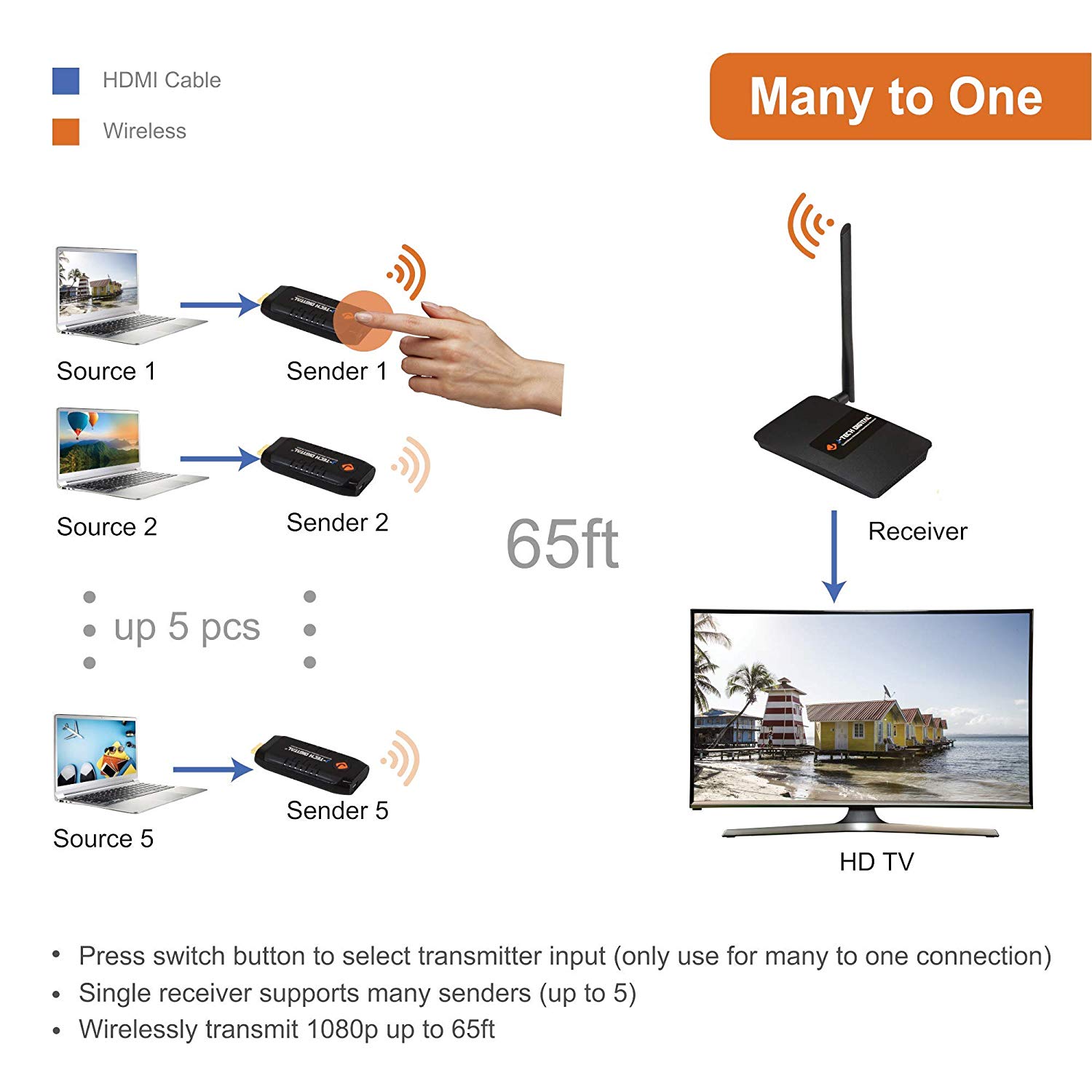

Many to One Setup:

---

J-Tech Digital Support Team 1-888-610-2818 [e-mail]
